Grid & subgrid — UI guide

The canvas chrome

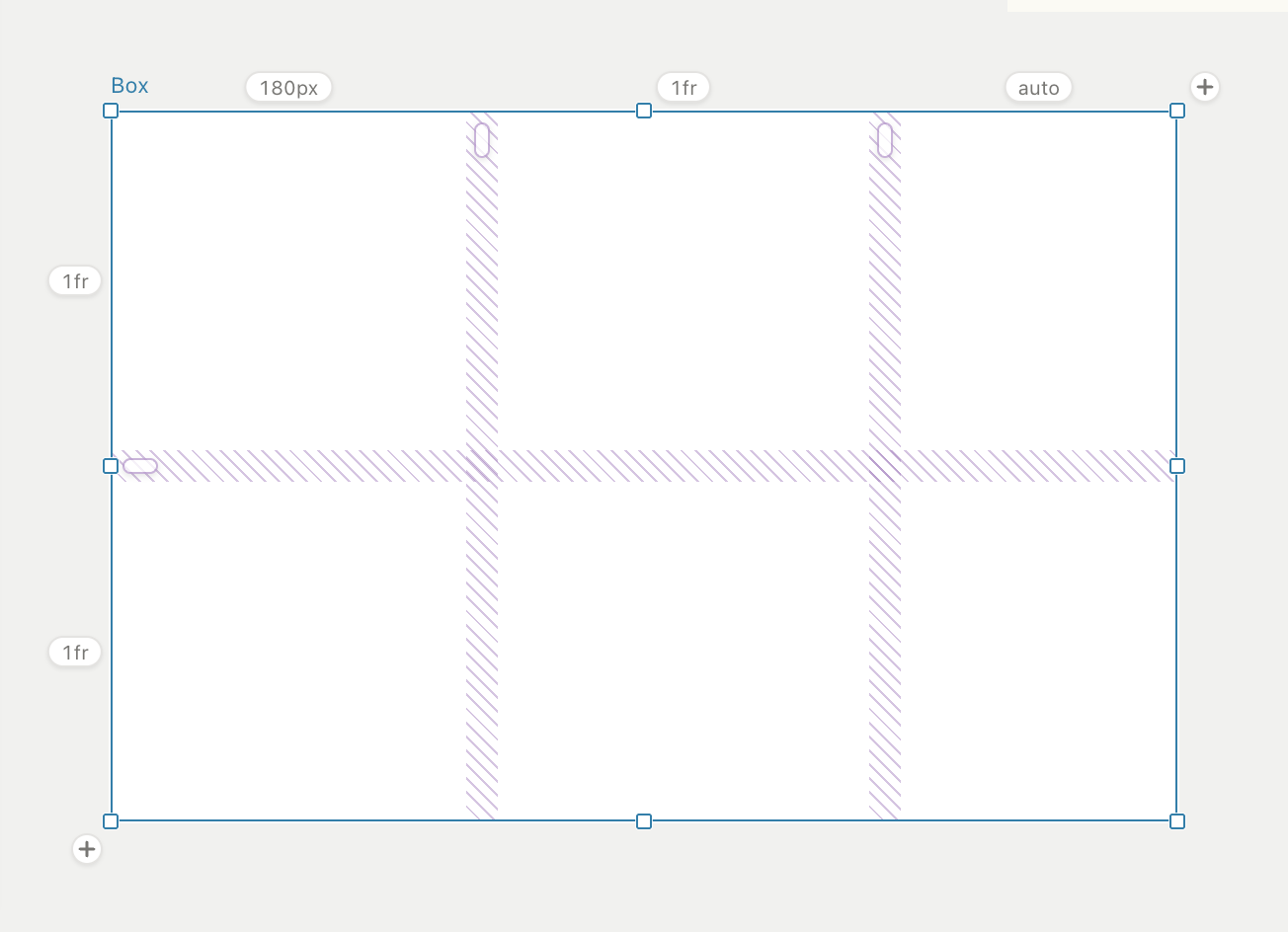

Everything here keeps a constant size on screen no matter the zoom level.

Dragging a boundary

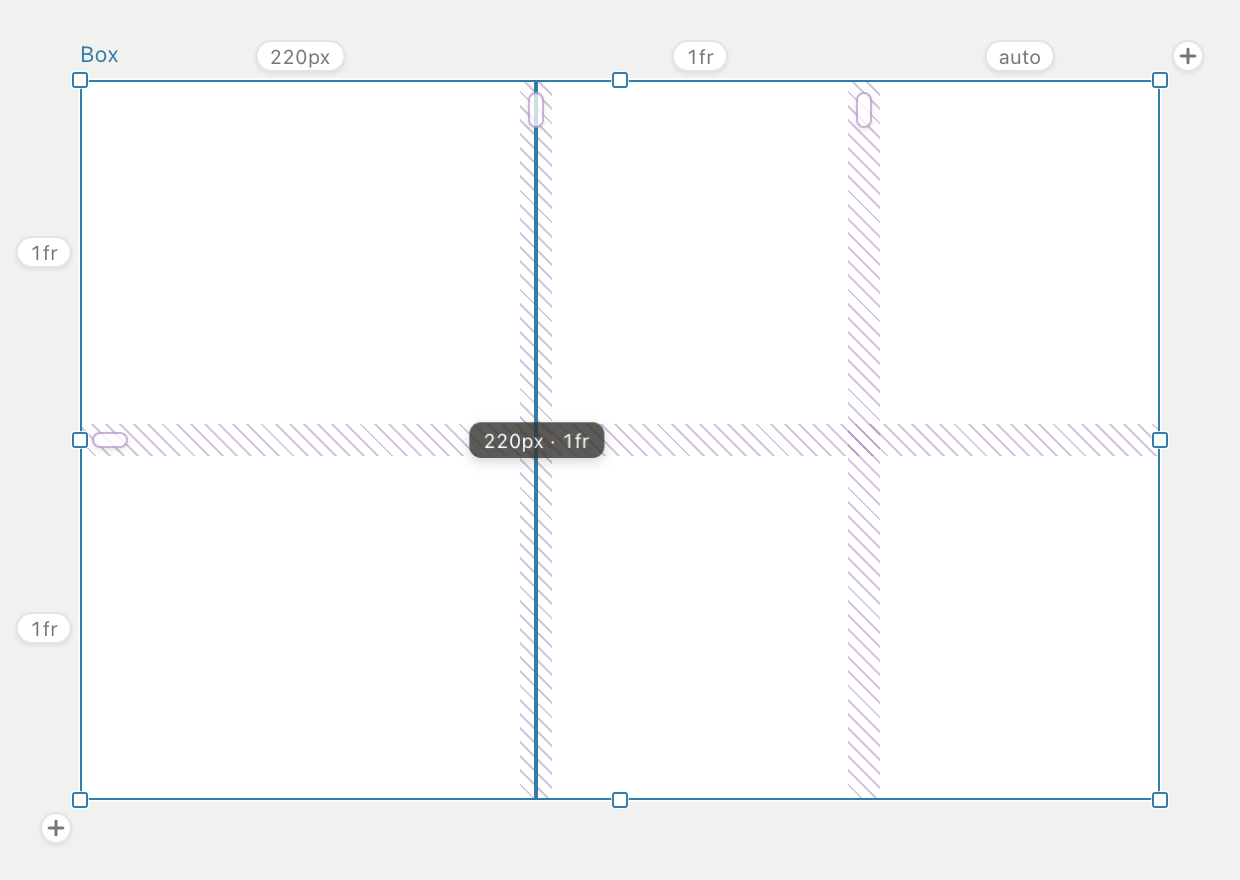

While you drag, a badge rides the boundary showing the live values of the two tracks being resized. The math is unit-aware:

• fr / fr — the pair's total fr is conserved and redistributed; other tracks stay pinned.
• px / fr (either order) — only the px side changes; the fr side reflows through free space.
• auto — converts to px at its current size the moment you drag it (the track stays px afterwards).

One drag is exactly one undo step. Escape mid-drag cancels just the drag, restoring the template to the exact string it was before — selection kept. Boundaries whose neighbors aren't plainly numeric (minmax, fit-content, calc…) show a not-allowed cursor; edit those in the inspector instead.

Hover is synchronized across surfaces

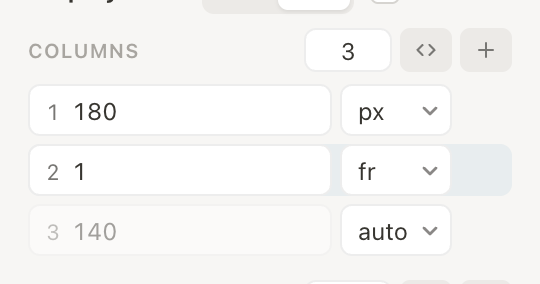

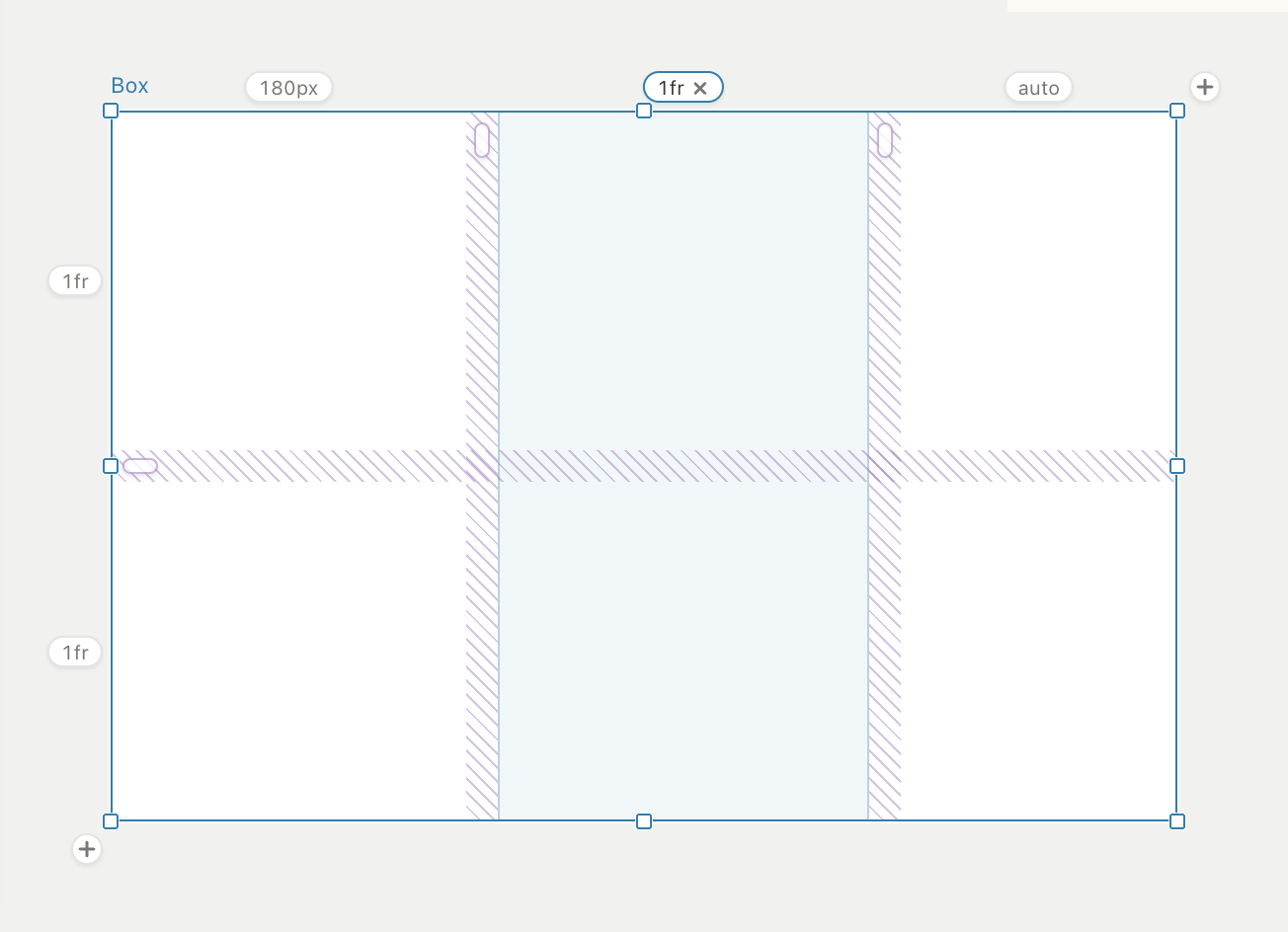

Hovering a chip tints the track's full extent on canvas and lights the matching row in the inspector; hovering an inspector row tints the canvas track. Useful for confirming which 1fr is which before you edit it.

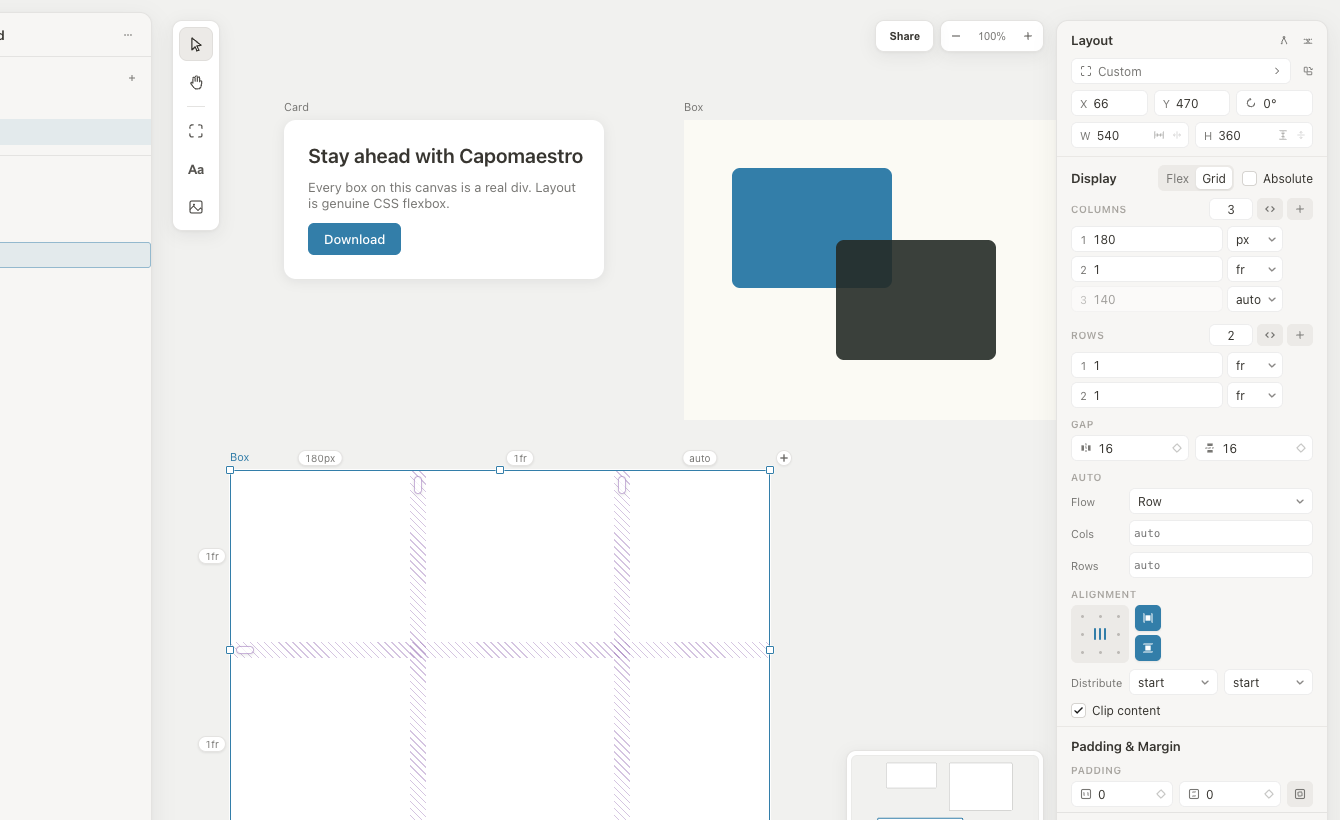

Inspector: Columns & Rows

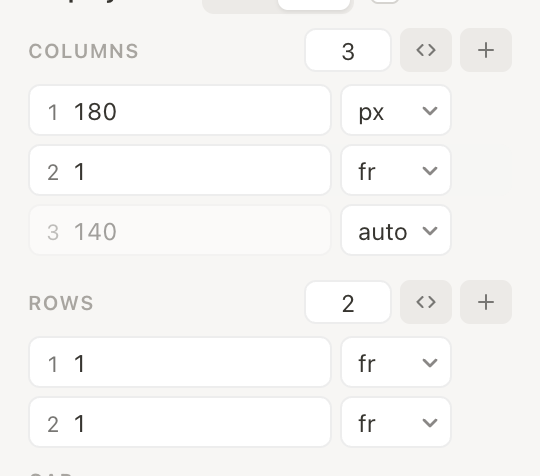

One list per axis. In the header:

• Count field — type, step (↑/↓, Shift ×10), or drag to scrub the number of tracks (1–100). Growing appends copies of the last track; shrinking drops from the end.
• **<> code toggle** — swaps the rows for the raw grid-template-* text, the full-syntax escape hatch (repeat(), auto-fill, named lines…):

Templates the structured UI can't represent (auto-fill/auto-fit, mixed multi-selections, >100 repeats) fall back to this text form automatically — nothing becomes uneditable, it just degrades to CSS.

• **+** — appends a duplicate of the last track (same space-sharing behavior as the canvas + chip when a single box is selected).

Each track row is a scrubbable number plus a unit menu:

• fr / px / % — switching unit converts through the track's current rendered size, so the layout doesn't jump; only the notation changes.
• auto — the field grays out and shows the resolved pixel size (row 3 above).
• … — flips the row to free CSS text; this is how you type minmax(120px, 1fr) into a single track.
• The − at the row's end (revealed on hover) removes the track; it's disabled — not hidden — when only one track remains.

Gap, Auto, Alignment

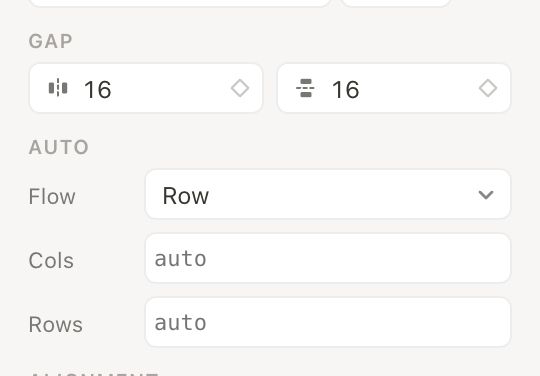

• Gap — column and row gap; the same values the canvas pills scrub.
• Auto — grid-auto-flow (which direction unplaced items fill) and the size of implicit tracks the browser creates when items overflow the explicit ones (grid-auto-columns/rows).
• Alignment — the 3×3 marker writes justify-items + align-items together: how every item sits inside its cell. The two toggles next to it stretch one axis each (stretch is the CSS default — items fill their cells); picking a dot on the marker exits stretch.
• Distribute — justify-content / align-content: how the track grid as a whole distributes inside the box when the tracks don't fill it (start, center, end, space-between…).

Why did my canvas chrome disappear?

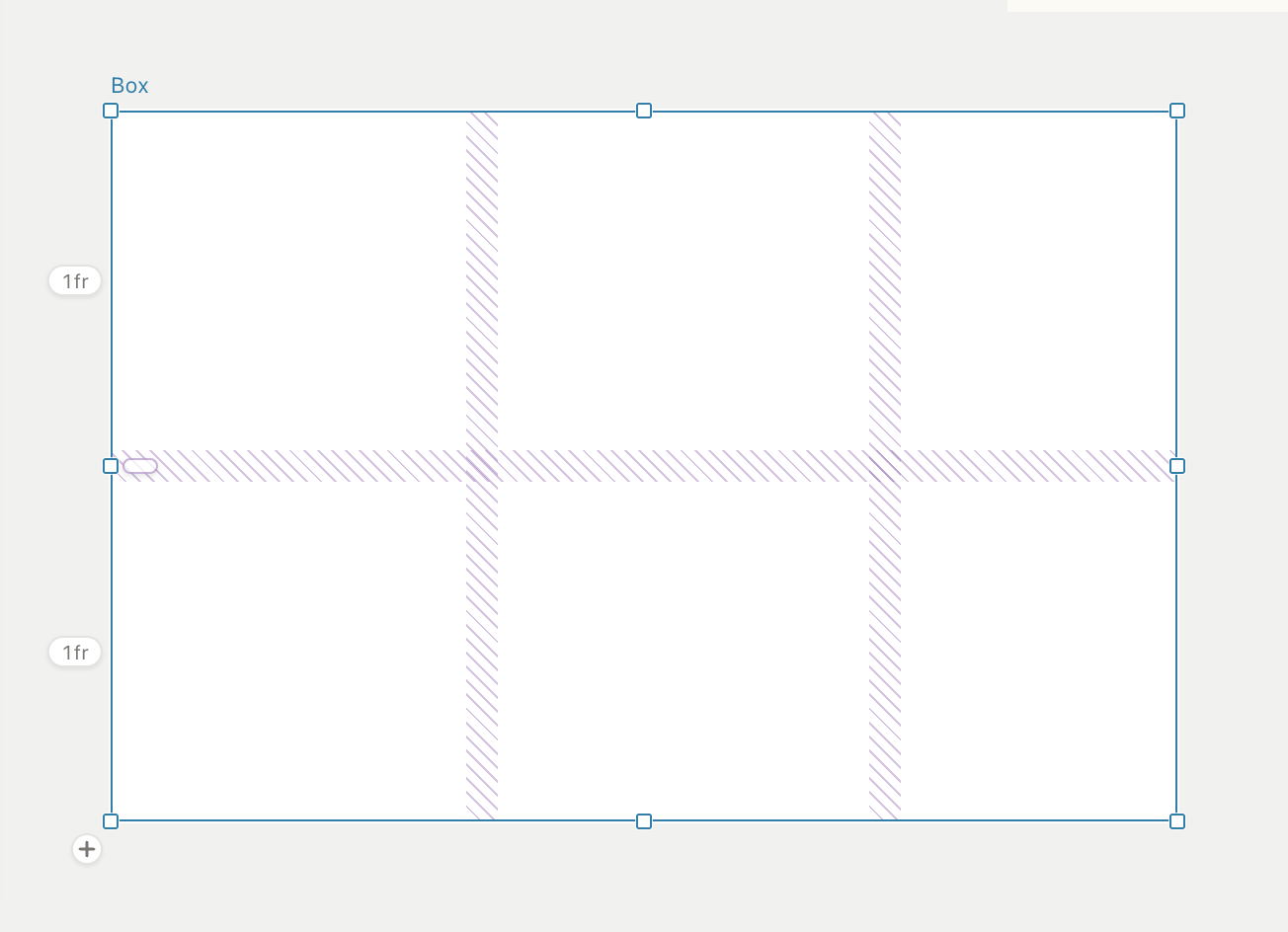

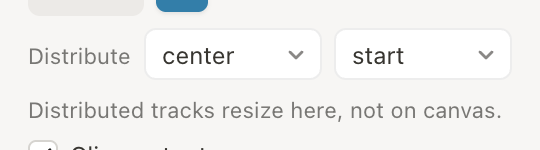

Canvas editing is enabled per axis, and an axis switches off when its Distribute is anything other than start/stretch (the browser only exposes track sizes, not positions, so the chrome would drift). The passive guides stay, and the inspector says so right under the setting that caused it. The chrome also stays off for an axis whose template doesn't parse or that has implicit tracks.

Placement — when a grid child is selected

Select an item inside a grid and the Placement section appears (the parent's canvas chrome stays up too).

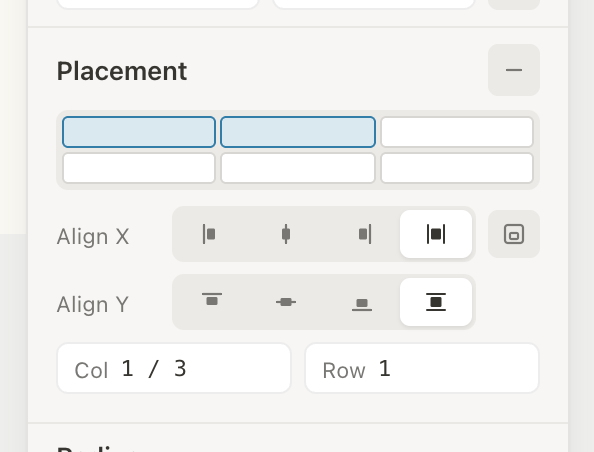

• Area picker — the parent's tracks in miniature. Click a cell to place the item there; drag to span a rectangle (above: columns 1–2, written as 1 / 3 — CSS line numbers, end-exclusive). The − in the header clears placement back to auto flow.
• Col / Row fields — raw grid-line syntax for everything the picker doesn't draw: span 2, 1 / -1, named lines. Spans and negative lines don't highlight in the picker but work fine.
• Align X / Align Y — by default these edit the parent grid's items alignment (the same justify-items/align-items as the grid's own Alignment group, reachable without switching selection — grid is how plain CSS aligns things: on the container).

Aligning one item differently

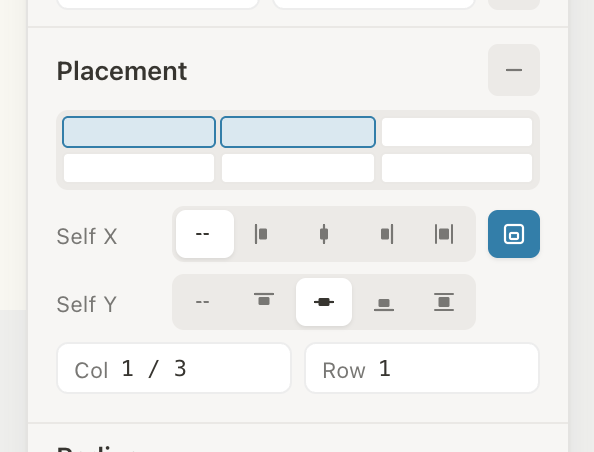

The toggle at the row's end (item-in-cell icon) switches the rows to Self X / Self Y — per-item justify-self/align-self overrides, with a dashed auto segment meaning "inherit the grid's default". Items that already carry overrides open in this mode, so the state is never hidden. Clicking the lit toggle clears the overrides and the item follows the grid again.

CSS grid has no per-row or per-column alignment property, so "align the second column's items to the bottom" is: multi-select that column's items, flip the toggle, set Self Y once — the write fans out as one undo step.

Subgrid

When a grid box itself sits in a grid, each axis header grows a subgrid toggle (the leftmost button below). Switching it on sets that axis's template to subgrid: the box adopts the parent's tracks for perfectly aligned nesting. Switching it off gives the box one 1fr per track it was rendering, so the layout doesn't jump.

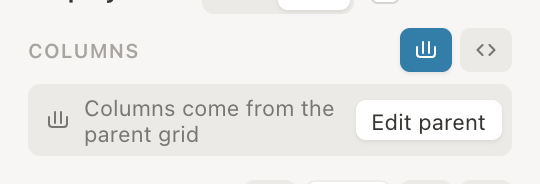

While an axis is subgridded its tracks aren't this box's to edit, so the track rows are replaced by a card that says where they live — Edit parent jumps the selection to the grid that owns them. Count and + disappear; the code toggle stays as the raw-text escape hatch (that's where line-name lists like subgrid [a] [b] go).

The Layers panel marks subgridded boxes with their own icon:

Subgrid on canvas

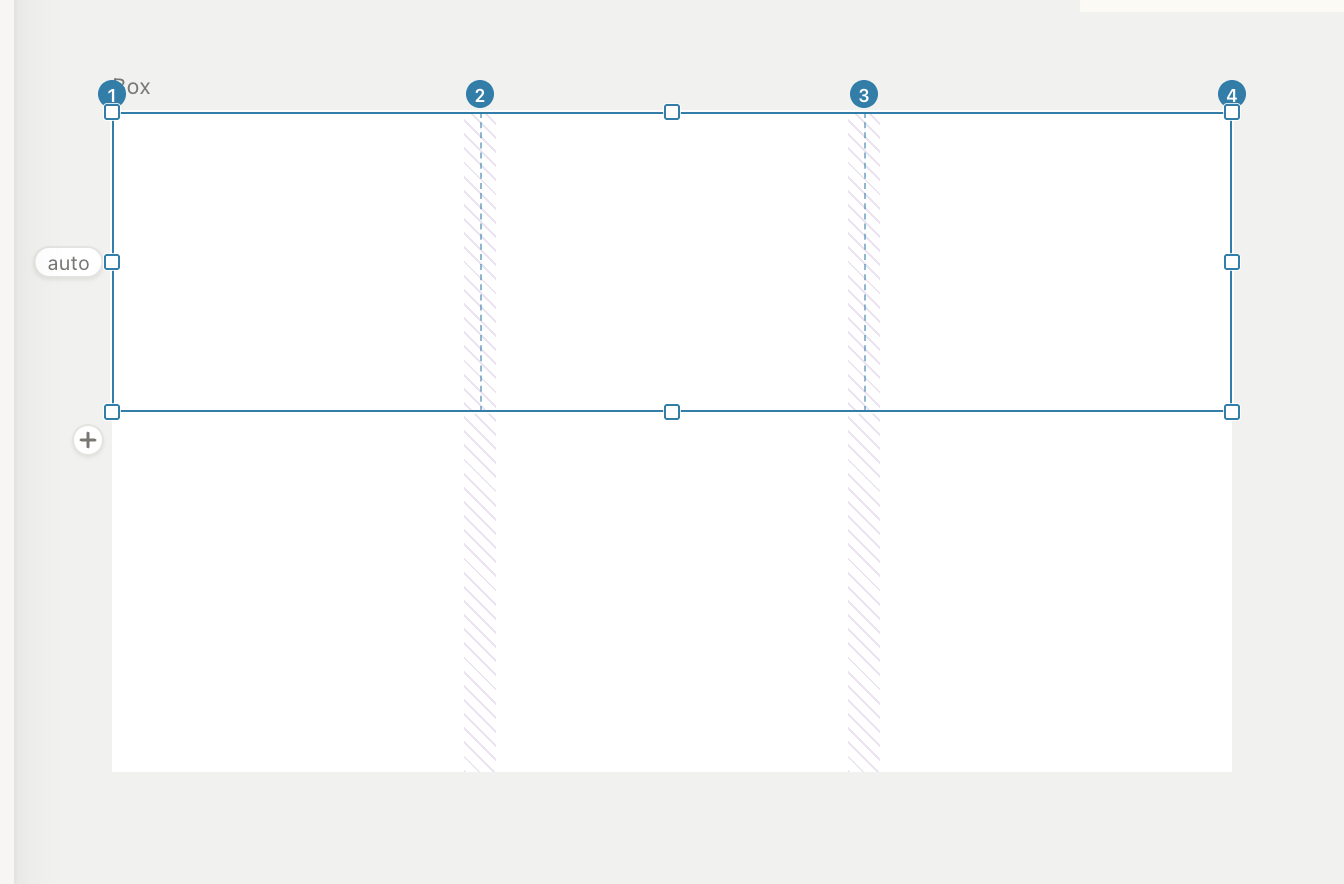

A selected subgrid renders the parent tracks it spans as its own chrome:

• dashed lines at the adopted interior boundaries;
• line numbers renumbered from 1 — these are what placement inside the subgrid counts (the area picker for its children uses the same adopted tracks);
• the parent's own guides soften to faint while the adopted chrome shows.

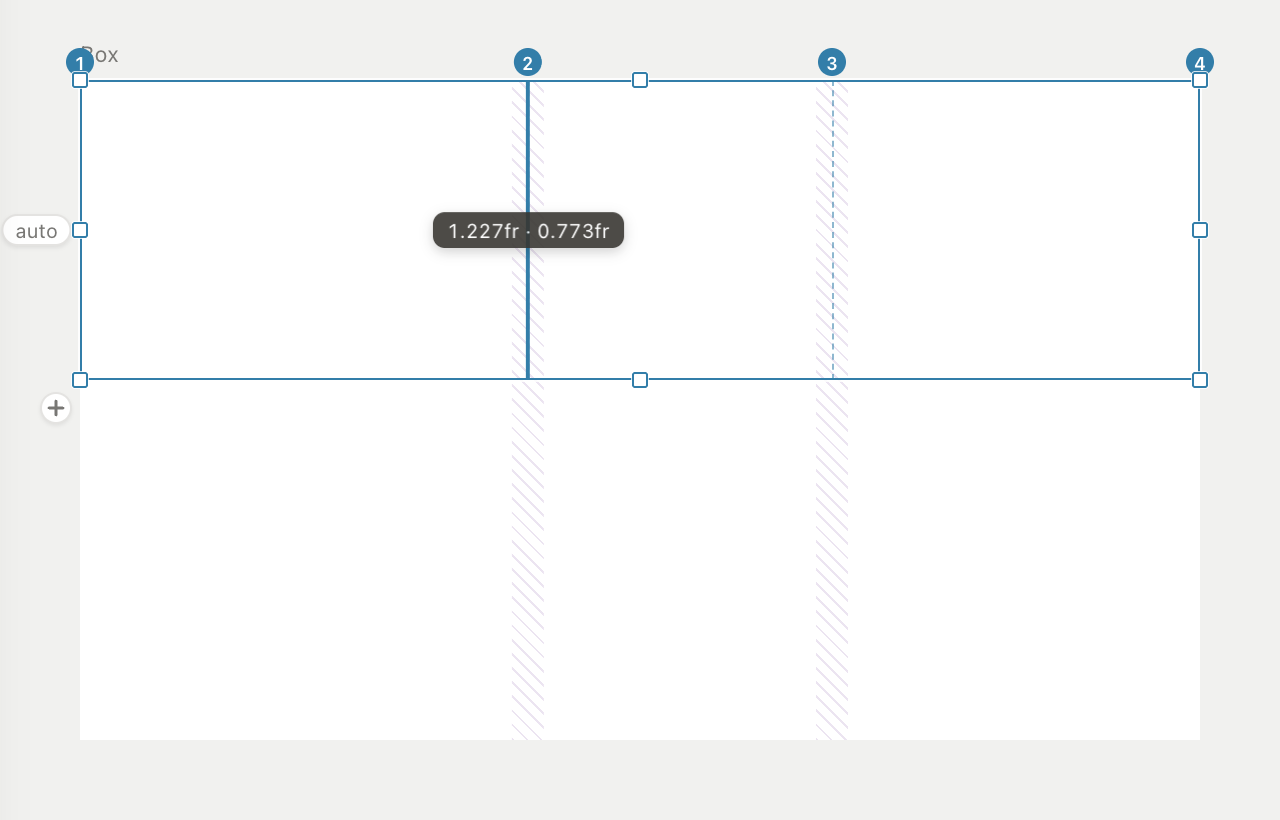

The adopted boundaries are still draggable — the drag is forwarded to the parent's template, with the same badge, undo, and Escape behavior as dragging on the parent itself:

There are no chips, +, or gap pills on a subgridded axis — track structure belongs to the parent. If the subgrid is shrink-wrapped off the parent's track edges (self-alignment other than stretch), the adopted chrome stays away rather than drawing in the wrong place.

Undo, cancel, commit

The same rules everywhere:
